Hydraulic pruning shears

Hydraulic pruning shears

Hydraulic Pruning Shears

Hydraulic Pruning Shears

Following Shears must work only with their kind of hydraulic system

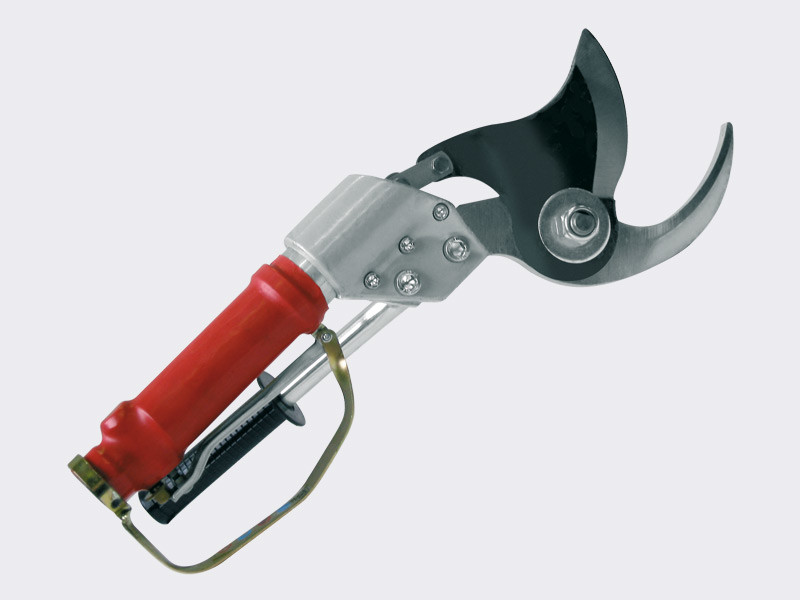

Shears TS 65

Hydraulic Pruning Shears model TS 65, special for big pruning of vineyards.

Shears technical data:
Cutting power: 70 mm
Capacity: L/mn 1,6
Weight: 3600 gr
Pressure: 150-170 Bar

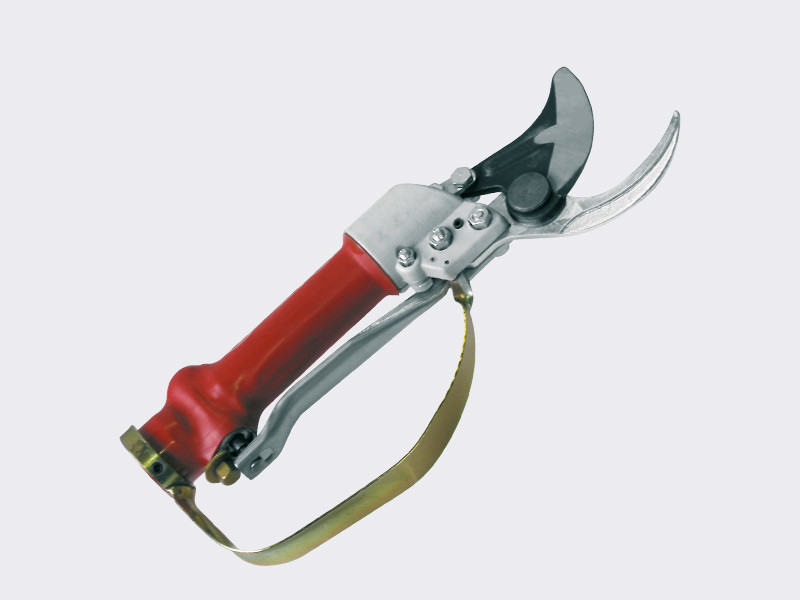

Shears TS 45

Hydraulic pruning shears TS 45 model, with progressive blades speed. Special for pruning of fruits trees.

Shears technical data:
Cutting power: 50 mm
Capacity: L/mn 1,2
Mod. TS weight: 1600 gr
Mod. TL weight: 1600 gr + rod weight from 400 a 600 gr
Pressure: 150-170 Bar

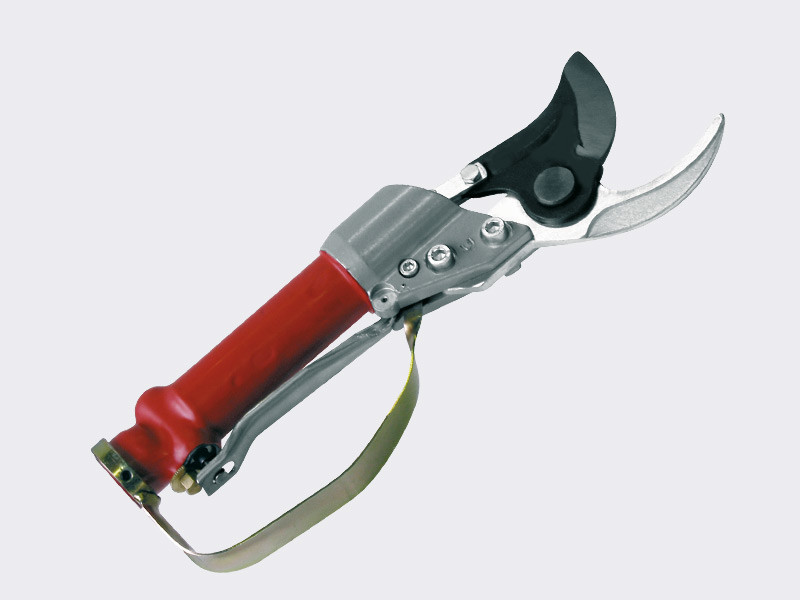

Shears TS 35

Hydraulic pruning shears TS 35 model, with progressive blades speed, it is very compact, special for fruits trees.

Shears technical data:
Cutting power: 40 mm
Capacity: L/mn 1
Mod. TS weight: 950 gr
Mod. TL weight: 950 gr + rod weight from 400 a 600 gr
Pressure: 150-170 Bar

Hydraulic units

P.T.O. 4 - tractors hydraulic units cod. PTO4 for 4 shears
CIT - Shears valves to be connected to the tractor hydraulic units for two outlets
