Lopping machines for vineyard with knifes

Lopping machines for vineyard with knifes

We design different kinds of Lopping machines for vineyards with knifes, based on your needs. The basic models are equipped with vertical bars with 6 knifes and a length of 1.90 mt. the machines are electro-hydraulic with joystick. The hydraulic distributor is adjustable depending on the extent of the tractor.
Included with the machines we provide flange standard orThird point coupling element, Supporting trestle with wheels adjustable in according to the height of the tractor.

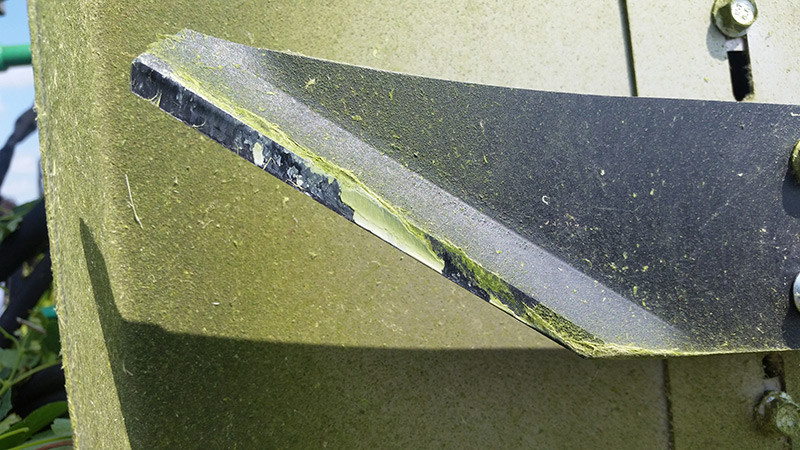

Our own knifes

Our own knifes of 35cm, made of strong Steel, they are built with a special treatment for the descaling. The knife’s shape allows the leaves to come in ward and our special sharpening keeps the knifes clean.

Lopping machines CBC 100

Lopping machines CBC 100

Lopping machines with knifes bilateral model

Minimum opening:
1,10 mt

Max opening:
1,80 mt

Height range adjustment:
50 cm

Optional:
horizontal toppings

Lopping machine Mod. CR/U 350

Lopping machine Mod. CR/U 350

Lopping machine with knifes “U” model with A pendulum frame and a automatic centering system

Minimum opening:
40 cm

Max opening:
110 cm

Height range adjustment:
102 cm

Lopping machine Mod. CR/L 350

Lopping machine Mod. CR/L 350

Lopping machine with knifes “L” model

Translation:
35 cm

Slewing:
30°

Height range adjustment:
50 cm

Optional:
joystick, hydraulic topping.

Accessories for Lopping machine with knifes

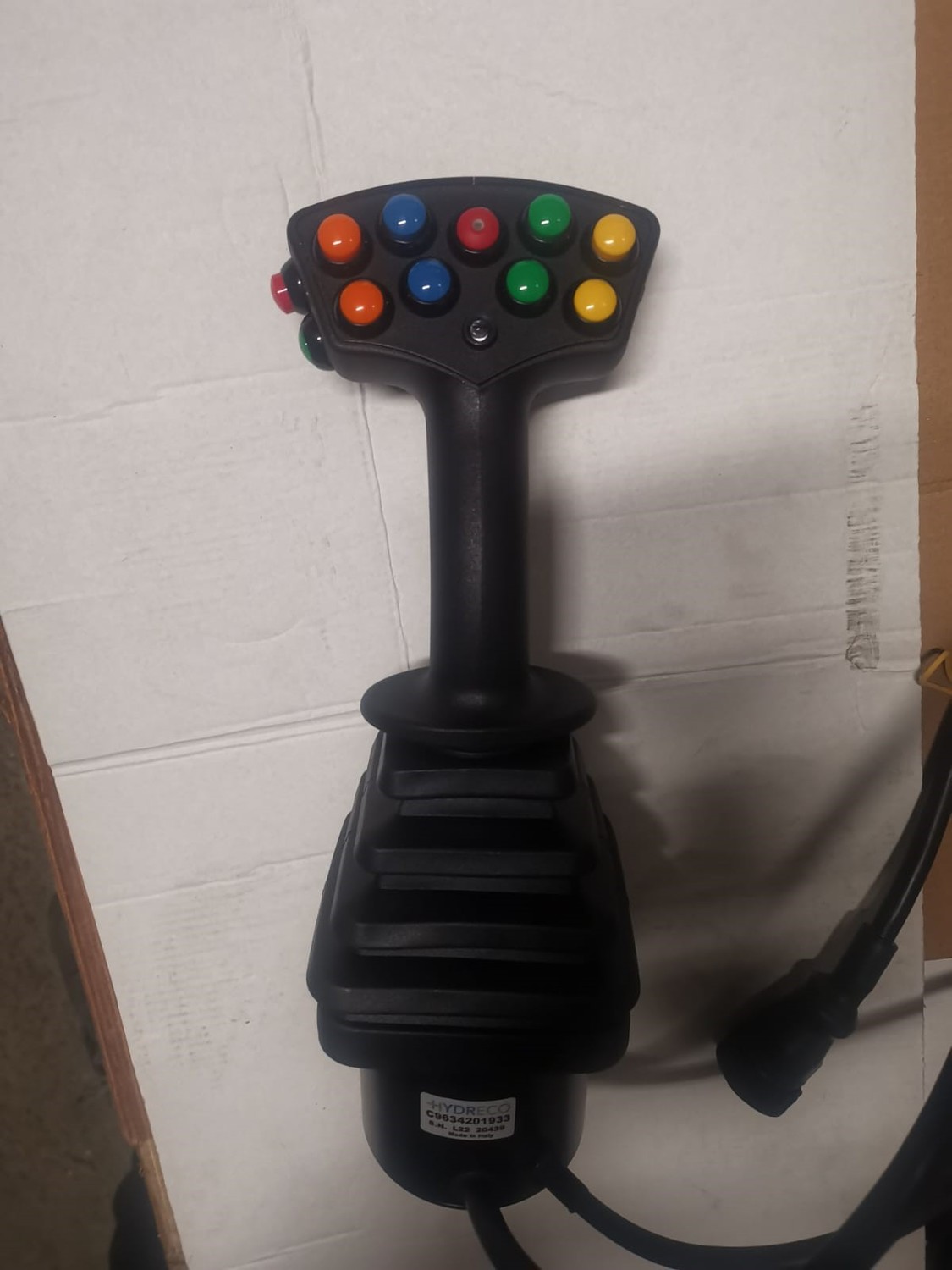

C0015 Joystick

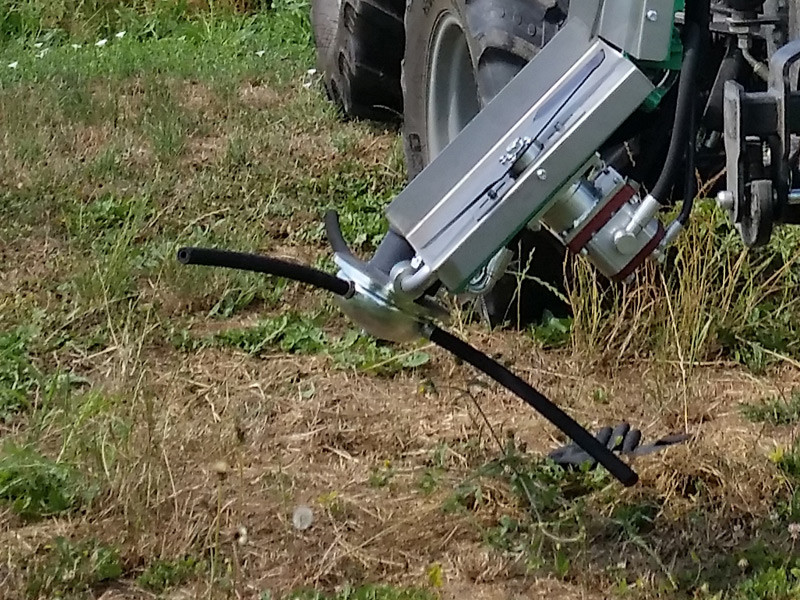

Sylvose knife with hydraulic engine inc. (45°)
C0069 Hydraulic System

Download Catalogues

Download Catalogues of FAMA pruning machines
