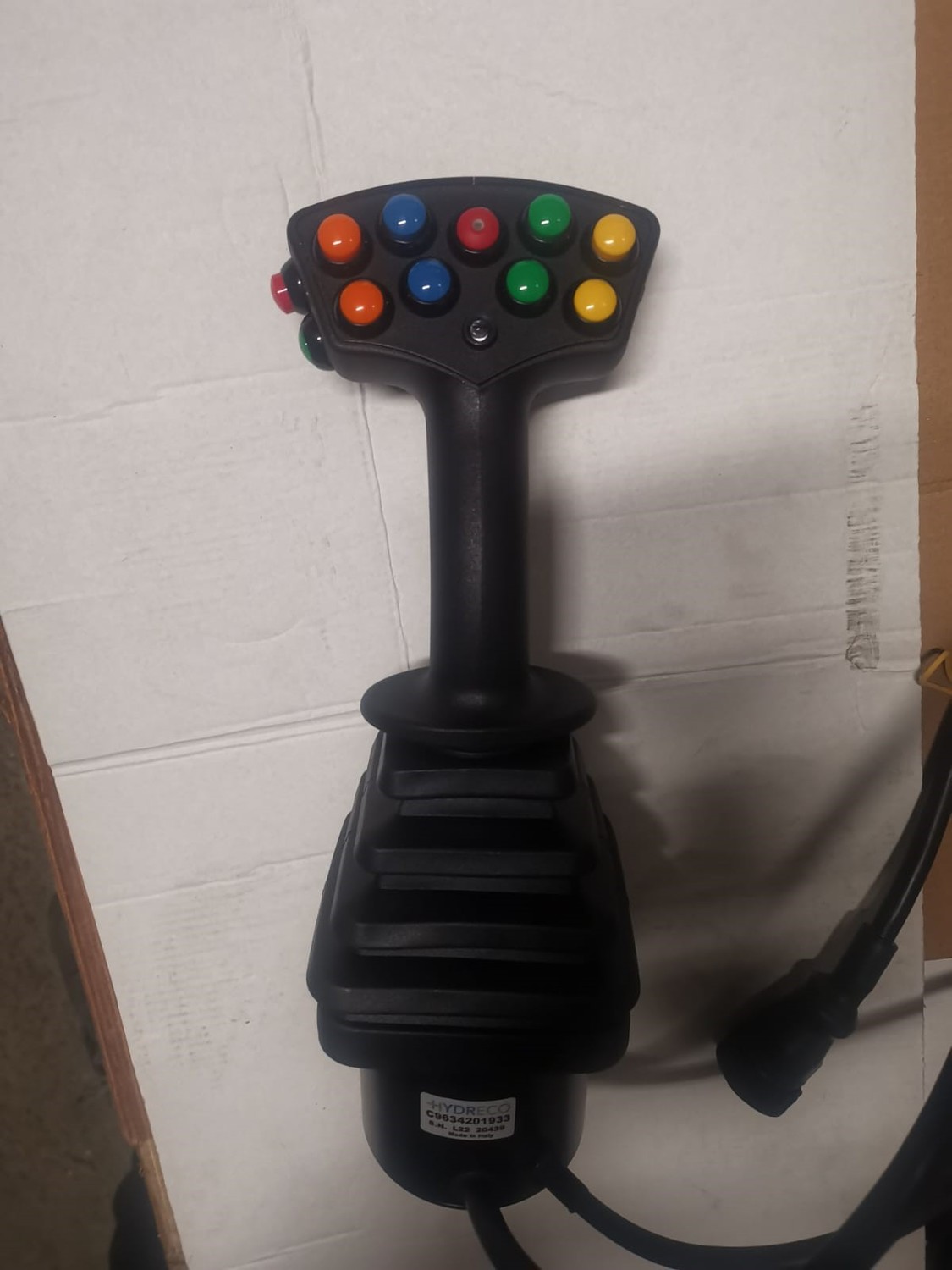

We design different kinds of Lopping machines for vineyards with knifes, based on your needs. The basic models are equipped with vertical bars with 6 knifes and a length of 1.90 mt. the machines are electro-hydraulic with joystick. The hydraulic distributor is adjustable depending on the extent of the tractor.
Included with the machines we provide flange standard orThird point coupling element, Supporting trestle with wheels adjustable in according to the height of the tractor.

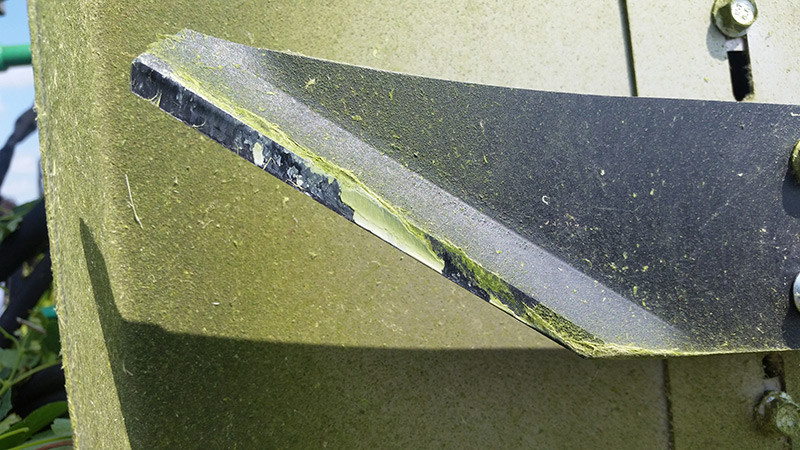

Our own knifes of 35cm, made of strong Steel, they are built with a special treatment for the descaling. The knife’s shape allows the leaves to come in ward and our special sharpening keeps the knifes clean.
Lopping machines with knifes bilateral model
Minimum opening:
1,10 mt
Max opening:
1,80 mt
Height range adjustment:
50 cm
Optional:
horizontal toppings
Lopping machine with knifes “U” model with A pendulum frame and a automatic centering system
Minimum opening:
40 cm
Max opening:
110 cm
Height range adjustment:
102 cm
Lopping machine with knifes “L” model
Translation:
35 cm
Slewing:
30°
Height range adjustment:
50 cm
Optional:
joystick, hydraulic topping.
Download Catalogues of FAMA pruning machines
