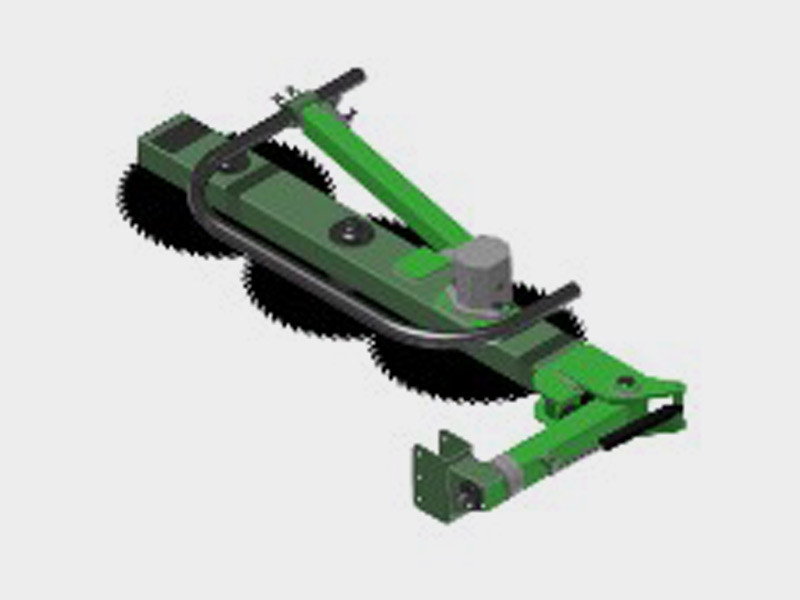

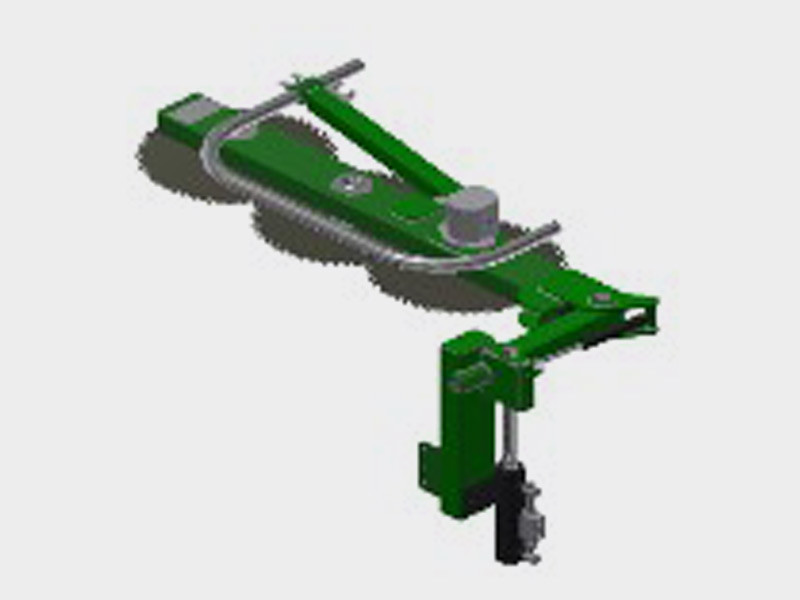

Pruning machine CKP 250 for fruit trees to be applied to an all-purpose tractor equipped with front hoisting device or with standard flanging.
Designed with the following adjustments:
• Side movement 50 cm
• Tilt movement 30°
• Height adjustment of cutting blades 50 cm
• Horizontal bar return.

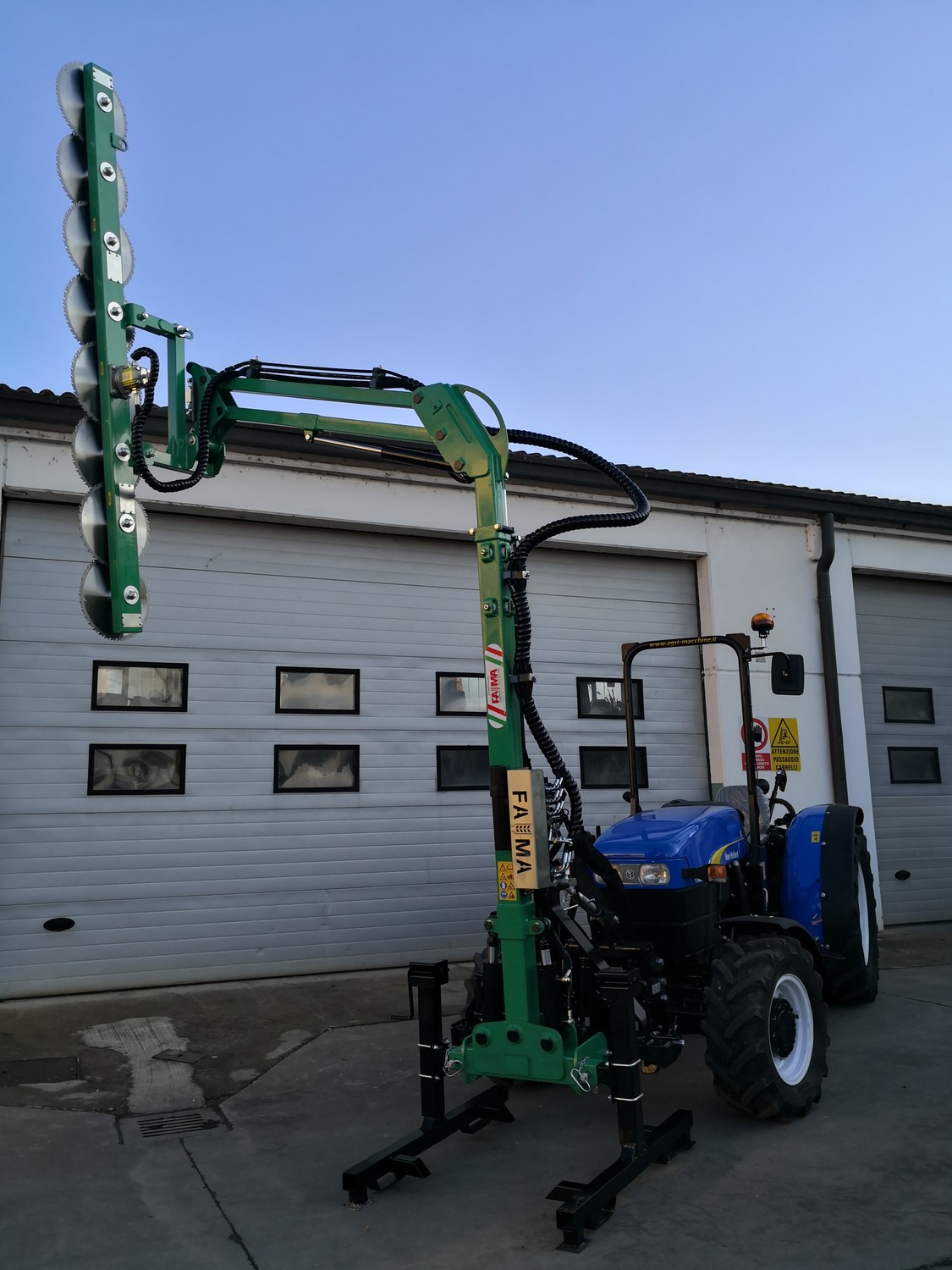

Pruning machine for fruit trees to be applied to an all-purpose tractor equipped with front hoisting device or with standard flanging.
Avaiable in 2 differents models:
• PRD/1 ( 1 ENGINE ) Ø CUTTING 12 CM
• PRD/2 ( 2 ENGINE ) Ø CUTTING 15 CM
Hydrulic Movements:
• Swing +/- 20°
• Head rising
• head rotation 110°
MAX CUTTING HEIGHT :
• Horizontal 4,10 mt
• Vertical 6,20 mt
MIN CUTTING HEIGHT :
• Horizontal 1,20 mt
• Vertical 0,40 mt
